The brand-new bi-directional adjustable remote reservoir Shock Absorber from XGS has arrived. XGS Remote has been designed to provide the ultimate off-road experience for both weekend adventurers and high performance off-road users. The unique 8 stage, separate compression and rebound adjustability provides a fully customised ride to suit any load application. The patented inbuilt hydraulic bump-stop provides the perfect solution for vehicles that experience shocks bottoming at high speeds or when heavily loaded. As the shock absorber reaches maximum compression, the internal bump stop progressively increases damping resistance for maximum impact control. As a result, the vehicle and occupants are protected from high stress loads. The innovative monotube design consists of a single wall construction which ensures direct heat dissipation. Complete your XGS Remote Suspension upgrade with a pair of XGS Remote Coil Springs available separately.

Specifications

Shock Design:	Nitrogen Charged, mono tube with remote reservoir
Construction:	3mm tube wall thickness
Piston Bore:	52mm
Piston Rod:	20mm hard chrome plated
Lift:	0-50mm
Suits:	Front left
Features:	8 stage adjustment of compression & rebound Position sensitive damping High durability rubber bushes In-built hydraulic bump stop Steel braided high temp oil hose Adjustable spring seat High grade damping oil Automatic multi-stage velocity controlled valving

Compatible Vehicles

FORD RANGER PY 06/22-On XL 2Dr Cab Chas 2.0L SiT
FORD RANGER PY 06/22-On XL Super C/C & P/Up 2.0L BiT
FORD RANGER PY 06/22-On XL 4Dr C/C & P/Up 2.0L BiT
FORD RANGER PY 06/22-On XLS 4Dr P/Up 2.0L BiT
FORD RANGER PY 06/22-On XLT Super Cab P/Up 2.0L BiT
FORD RANGER PY 06/22-On XLT 4Dr P/Up 2.0L BiT
FORD RANGER PY 06/22-On XLT 4Dr C/C & P/Up 3.0L V6
FORD RANGER PY 06/22-On Sport 4Dr P/Up 2.0L BiT
FORD RANGER PY 06/22-On Sport 4Dr P/Up 3.0L V6
FORD RANGER PY 06/22-On WILDTRAK 4Dr P/Up 2.0 BiT
FORD RANGER PY 06/22-On WILDTRAK 4Dr P/Up 3.0 V6
VOLKSWAGEN AMAROK 05/23 -On Core 4Dr P/Up 2.0L TDI405
VOLKSWAGEN AMAROK 05/23 -On Life 4Dr P/Up 2.0L TDI500
VOLKSWAGEN AMAROK 05/23 -On Style 4Dr P/Up 2.0L TDI500
VOLKSWAGEN AMAROK 05/23 -On Style 4Dr P/Up 3.0L V6 TDI600
VOLKSWAGEN AMAROK 05/23 -On Pan Americana 4Dr P/Up 3.0L V6 TDI600
VOLKSWAGEN AMAROK 05/23 -On Aventura 4Dr P/Up 2.3L Petrol TSI452
VOLKSWAGEN AMAROK 05/23 -On Aventura 4Dr P/Up 3.0L V6 TDI600

Reviews

Shipping Info & Returns

Delivery costs and timeframes are subject to your location and the product(s) in your order. During the checkout, please enter your delivery address to get the latest costs and timeframes available for your order.

To view our returns policy, please click here.

Package Dimensions

Weight	9.280000 kg
Length	770 mm
Width	270 mm
Height	200 mm

Installation

Approximate Fitting Time: 1hours
Suggested Fitting Cost: $145

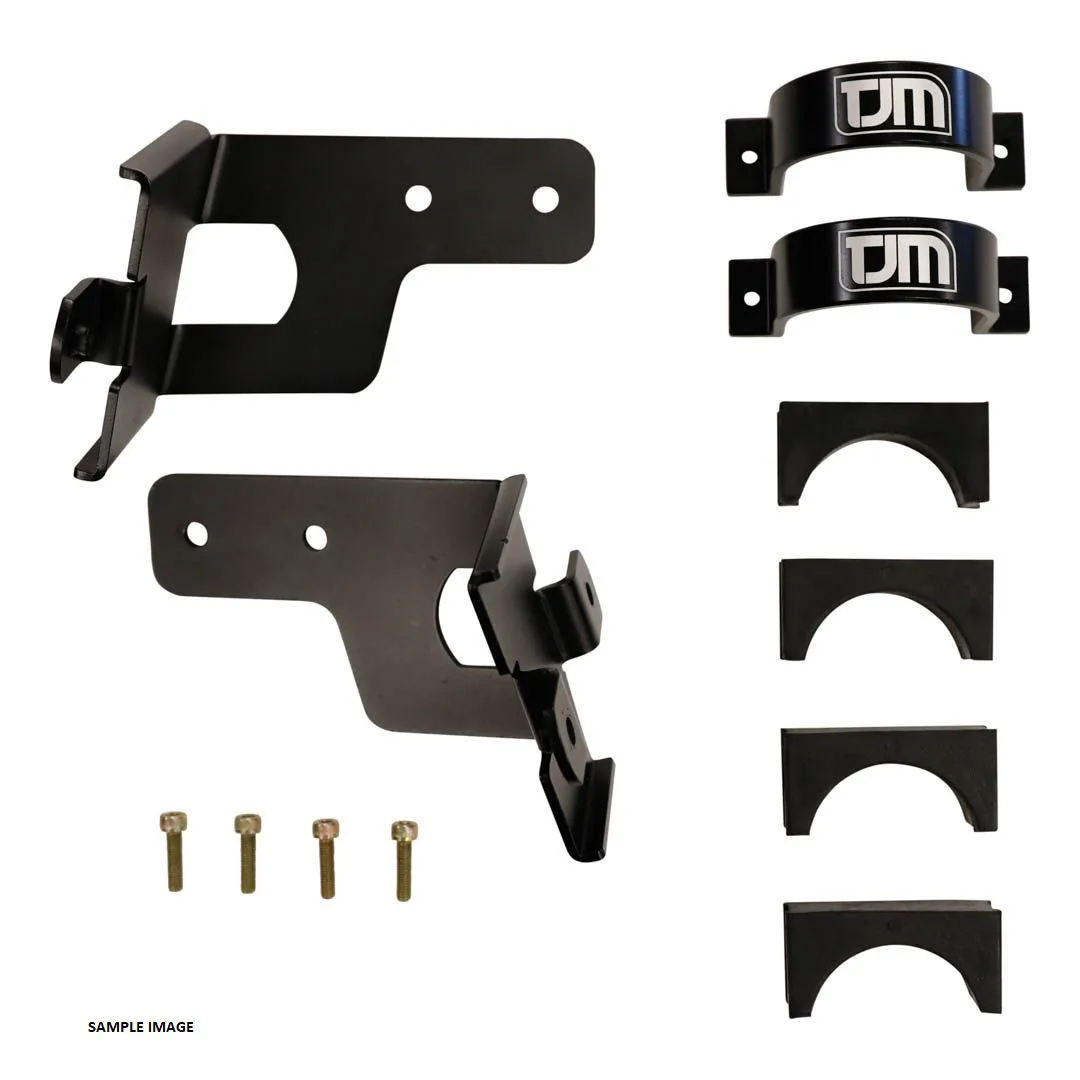

Requires Reservoir Mounting Kit (658RMKITF21Y). Kit contains mount for left and right struts.
770COS010 (pair) Coil Spring required
Fitting Instructions
Does not suit Aventura with factory 21" alloy wheels

Suggested time for fitment and fitment costs are an approximate figure only, actual labour costs may vary. See in-store for details.

XGS REMOTE FRONT LEFT STRUT WITHOUT COIL (EA)
